We are Manufacturer, Supplier of Column And Booms and our setup is situated in Pune, Maharashtra, India.

Anvin offer to our customer a wide range of precision manufactured welding column and boom that are widely used in industries for welding purpose. While column-boom can perform welding independently for any part. It may also perform circular or lengthwise welding is on rotator or positioner. Welding type that can perform by the system are SUBMERGED, MIG, TIG.

Anvin offers three models of column-boom to help extend your lift and reach.

  • Fixed column
  • Fixed column with rotation
  • Travel column with rotation

Anvin includes 1 X 1 to 7 X 7 Column-boom systems in its standard list. However, customised models can be manufactured up to 10X10 meters



Technical Information
Sr. No. MODEL PAYLOAD CAPACITY (Kg) MIN. HEIGHT UNDER BOOM (MM) MAX. HEIGHT UNDER BOOM (MM)
1 ACB - 1 X 1 150 500 1500
2 ACB - 2 X 2 200 700 2700
3 ACB - 4 X 4 250 750 4750
4 ACB - 5 X 5 250 1000 6000
5 ACB - 6 X 6 350 1200 7200
6 ACB - 7 X 7 350 1200 8200

  • Anti-fall mechanism in all models
  • Minimum deflection even when 'Boom' extended fully
  • Jerk free movement for vertical and horizontal stroke
  • Adjustable boom speed
  • Limit switch for all movements
  • Remote control with 10 Mtr cable
  • Automation system
  • Operator's seat
  • Motorised column rotation
  • Trolley provision for column
  • Camera tracking system
  • Synchronous working system with rotators
  • Increased production
  • Allow maximum flexibility to welding head manipulator
  • Trolley car mounted version gives accessibility to the full shop length
  • For long seam and 'C' seam weld accessibility

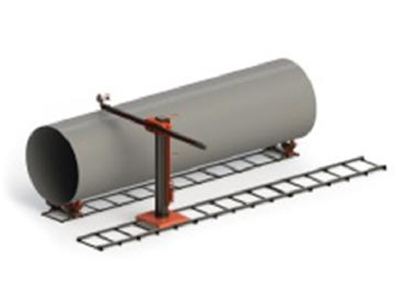

Column And Boom

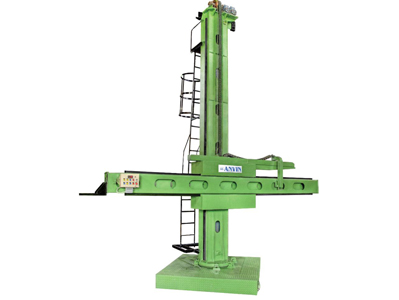

Column And Boom

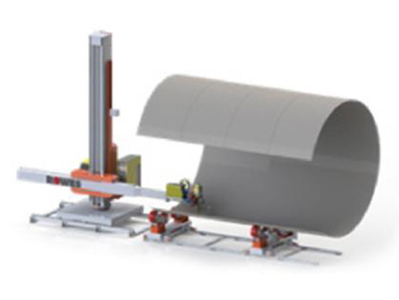

Column And Boom
