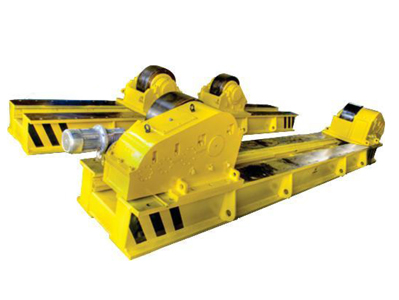

The Self Centering types : Model 'SCR' SERIES

Construction of machine is similar to that of conventional type Rotators. However, Housing Brackets are supported directly on the machine bed and are attached to the bed only with an L.H./ R.H. Lead Screw and nuts. When the Lead Screw is rotated with the ratchet handle, the Roller Brackets move simultaneously towards each other or away from each other. In this series there will be twin drive arrangement. This type of design provides simultaneous and step less adjustment of the Roller housings, and keep the job axis always at the same position irrespective of diameter setting.


MODEL SCR
5
SCR
10
SCR
20
SCR
30
SCR
40
SCR
50
SCR
80
SCR
100
SCR
120
SCR
150
SCR
200
SCR
300
SCR
500
CAPACITY- DRIVE & IDLE (TONS) 5 10 20 30 40 50 80 100 120 150 200 300 500
SPEED RANGE (mm/min) 150-1250 150-1250 150-1250 150-1250 150-1250 150-1250 150-1250 150-1250 150-1250 150-1250 150-1250 150-1250 150-1250
VESSEL (min-max) (mm) 400 - 4000 400 - 4000 400 - 4000 400 - 4000 400 - 4000 400 - 4000 400 - 4000 400 - 4000 400 - 4000 400 - 4000 400 - 4000 400 - 4000 400 - 4000
